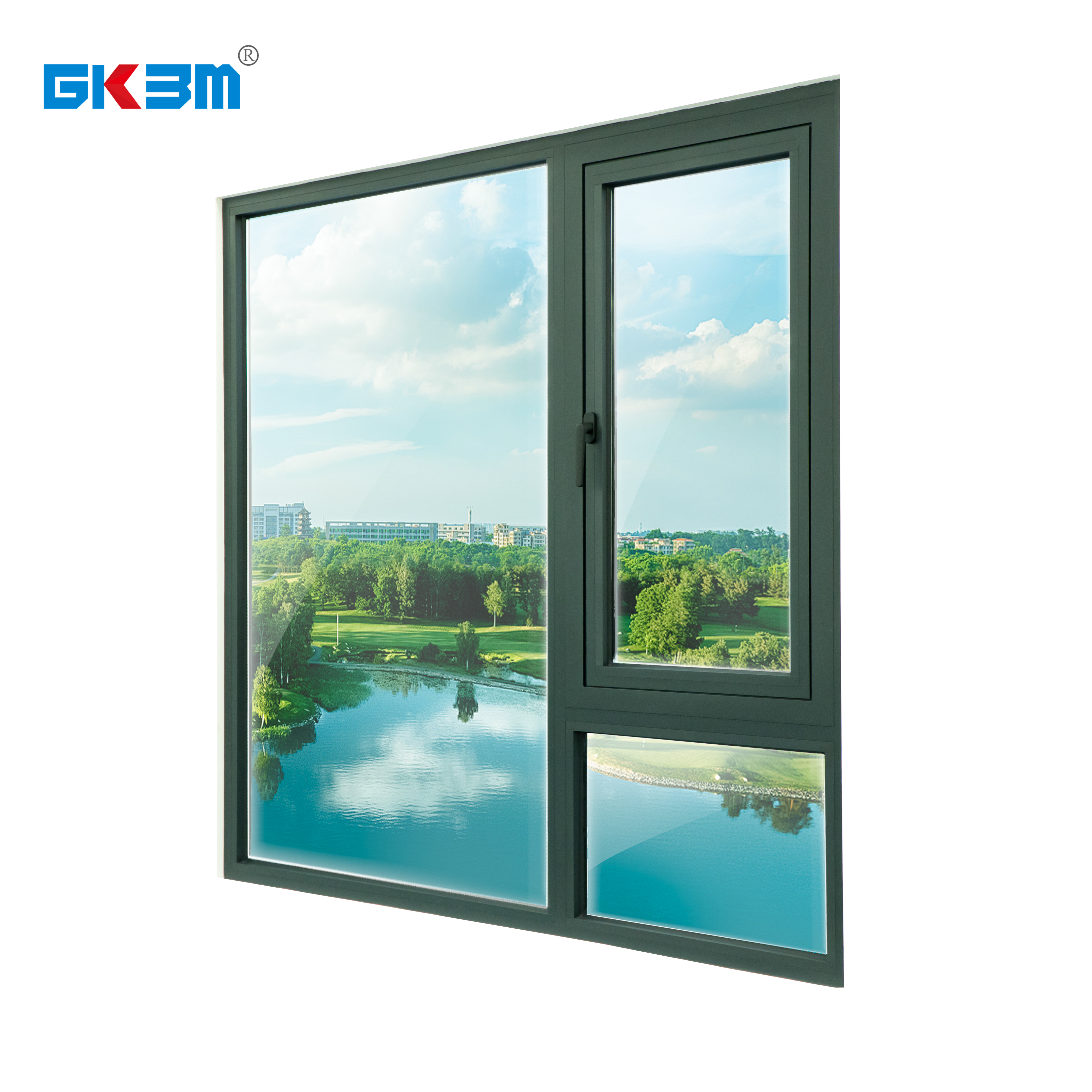

60 uPVC Casement Window

Profile structure: 60mm

Steel lining specifications: 1.5mm thermally slow zinc steel village

Profile wall thickness: visible side 2.8mm; non-visible side 2.5mm

Hardware configuration: 13 series internal opening, 9 series external opening (brand optional)

Glass configuration: Hollow LOW-E glass (optional)

Send email to us

Product Detail

60 uPVC Casement Window’s Basic Parameters

Profile structure: 60mm
Steel lining specifications: 1.5mm thermally slow zinc steel village
Profile wall thickness: visible side 2.8mm; non-visible side 2.5mm
Hardware configuration: 13 series internal opening, 9 series external opening (brand optional)
Glass configuration: Hollow LOW-E glass (optional)

Performance:

Thermal insulation performance K≤1.8 W/（㎡·k）
Water tightness level 4 (350≤△P＜500Pa)
Air tightness level 6 (1.5≥q1>1.0)
Sound insulation performance Rw≥35dB
Wind pressure resistance level 6 (3.5≤P＜4.0KPa)
