Product Introduction

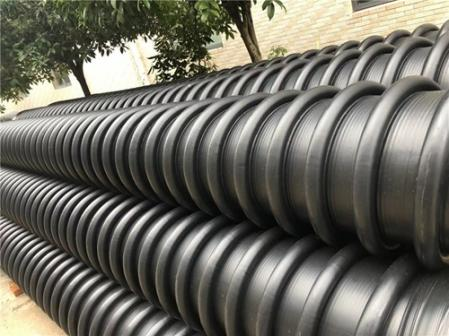

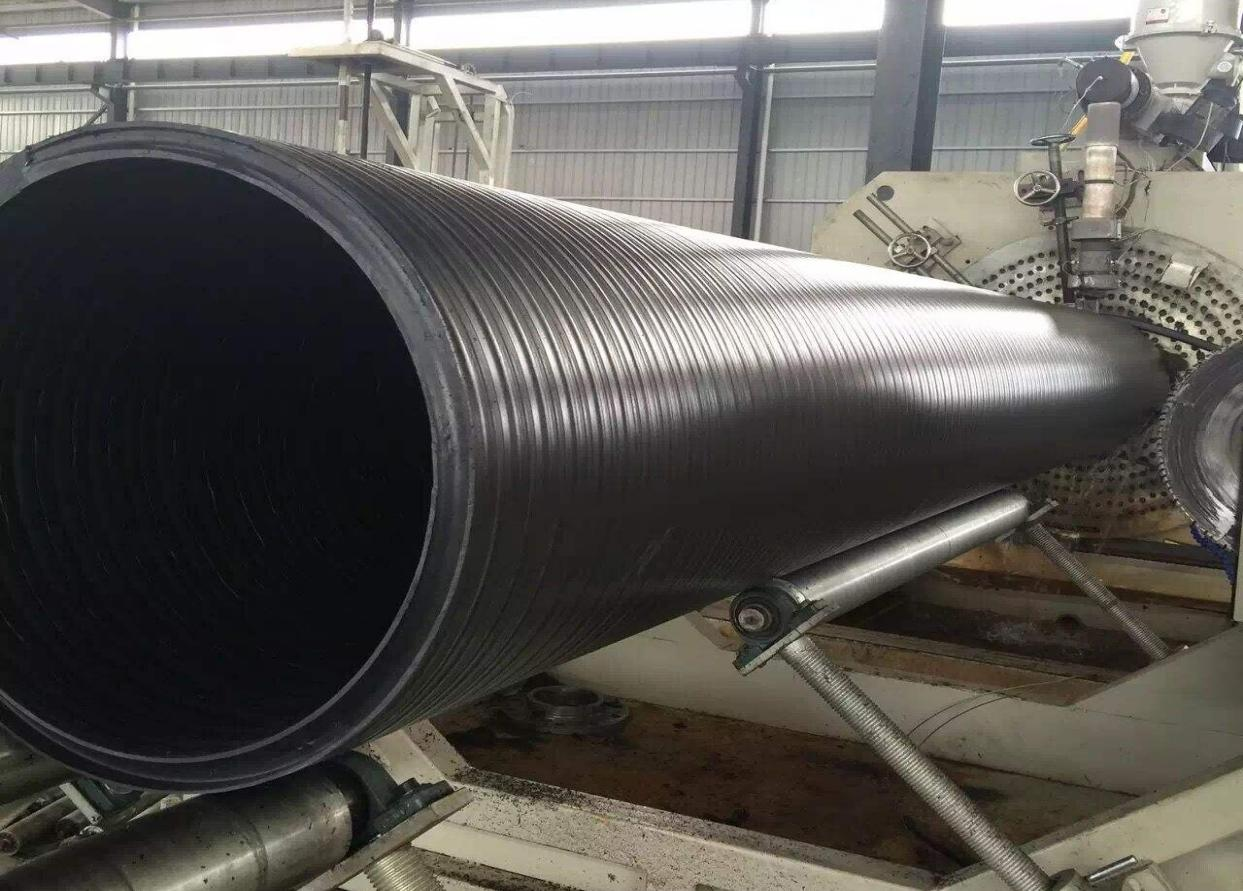

GKBM buried polyethylene (PE) structural wall pipe system polyethylene winding structural wall pipe (hereinafter referred to as HDPE winding structural wall pipe), using high-density polyethylene as the raw material, through the thermal extrusion winding molding of a new type of pipe. In addition to the characteristics of ordinary plastic pipe, due to the special hollow “工” structure, it has excellent ring stiffness and good strength and toughness, light weight, strong impact resistance, not easy to break and so on.
GKBM mainly produces SN4, SN8, SN12.5 grade products, and the product color is generally black.
Product Characteristics
HDPE braided structural wall pipe is a flexible pipe, and the pipe wall adopts the “工” type structure in accordance with the principle of mechanics. The product has the following significant features:
Quality Advantage: high strength, good resistance to pressure and impact.
Strong resistance to external pressure: good anti-settlement performance, low requirements for technical treatment of the foundation, can be applied to soft soil and quicksand foundation.
Small Molecular Resistance Coefficient, Large Flow: smooth inner wall, small moleyang, strong water capacity, can use smaller pipe diameter instead of larger diameter concrete pipe.
Good Chemical Stability: connected with electro-thermal fusion with live thermal expansion band, the joints have no leakage and will not produce secondary pollution. Good corrosion resistance, not easy to be sewage, wastewater and chemicals corrosive, not Phi soil decay material corrosion.
Long Service Life: superior performance against abrasion, wear-resistant than steel pipe, cement pipe, long service life.
Convenient Construction: easy to connect, can be connected outside the pipe trench, and then pushed to the trench as a whole, effectively accelerate the progress of the project, shorten the project time and cost of energy workers subject to seasonal, temperature constraints require low, in the -40-60 °C temperature can be normal operation. Light weight, easy to carry, convenient construction, burying the pipe only need excavator, do not need large-scale equipment, the comprehensive cost of the project is low.
Application Fields
Underground sewage and rainwater discharge of municipal construction;
Farmland, orchard, forest belt drainage and irrigation pipe network;
Low-pressure water transmission, drainage and flooding pipe network of water conservancy project;
Ventilation of mines and buildings;
Industrial wastewater discharge pipe network;
Integral processing of pipeline inspection wells and chemical containers.
Contact info@gkbmgroup.com to choose from a wider variety of pipes to suit your needs!
Post time: Apr-02-2025
