Warping in PVC profiles (such as door and window frames, decorative trims, etc.) during production, storage, installation, or use primarily relates to thermal expansion and contraction, creep resistance, external forces, and environmental temperature and humidity fluctuations. Measures must be implemented throughout the entire process—from production control, storage and transportation, installation and construction, to routine maintenance - which can be categorised into the following four core stages:
Production Phase: Optimising Processes to Enhance the Profile’s Intrinsic Resistance to Warping
The inherent quality of PVC profiles forms the foundation for warp prevention. Production adjustments must enhance structural stability through:
1. Optimising raw material ratios to increase rigidity and creep resistance
- For core materials, precisely control the ratio of PVC resin, stabilisers, and plasticisers. Simultaneously incorporate sufficient fillers and impact modifiers to ensure the profile’s flexural modulus at room temperature is ≥2500MPa.
- Avoid excessive use of recycled material, as reduced purity and increased impurities lead to inconsistent mechanical properties, predisposing sections to localised bending.
2. Optimise extrusion and cooling processes to minimise internal stresses
- During extrusion, regulate screw speed and extrusion temperature to prevent uneven melting caused by excessive heat or excessive extrusion pressure from insufficient temperature, which generates internal stresses leading to bending.

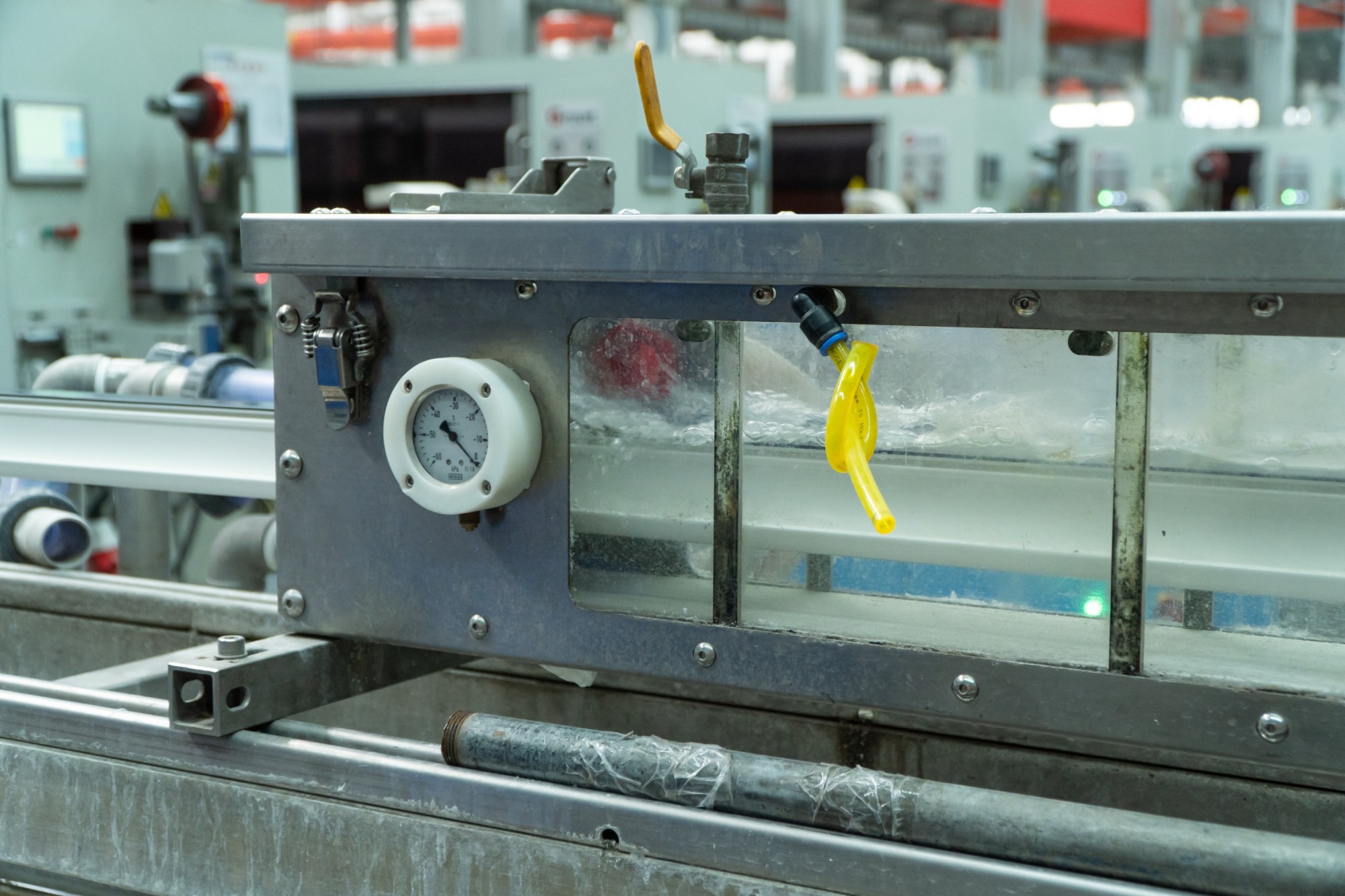

- During cooling and setting, employ ‘gradient cooling’ to ensure the temperature difference between the profile’s interior and exterior remains ≤5°C. This prevents uneven cooling speeds causing inconsistent sectional shrinkage, which could lead to bending towards the thinner-walled side. The setting die must precisely match the profile cross-section to prevent deformation during extrusion.
Storage and Transportation: Prevent External Pressure and Sudden Environmental Temperature/Humidity Changes
PVC profiles are susceptible to premature bending due to stress or environmental factors if improperly stored or transported between factory dispatch and installation. Key considerations include:

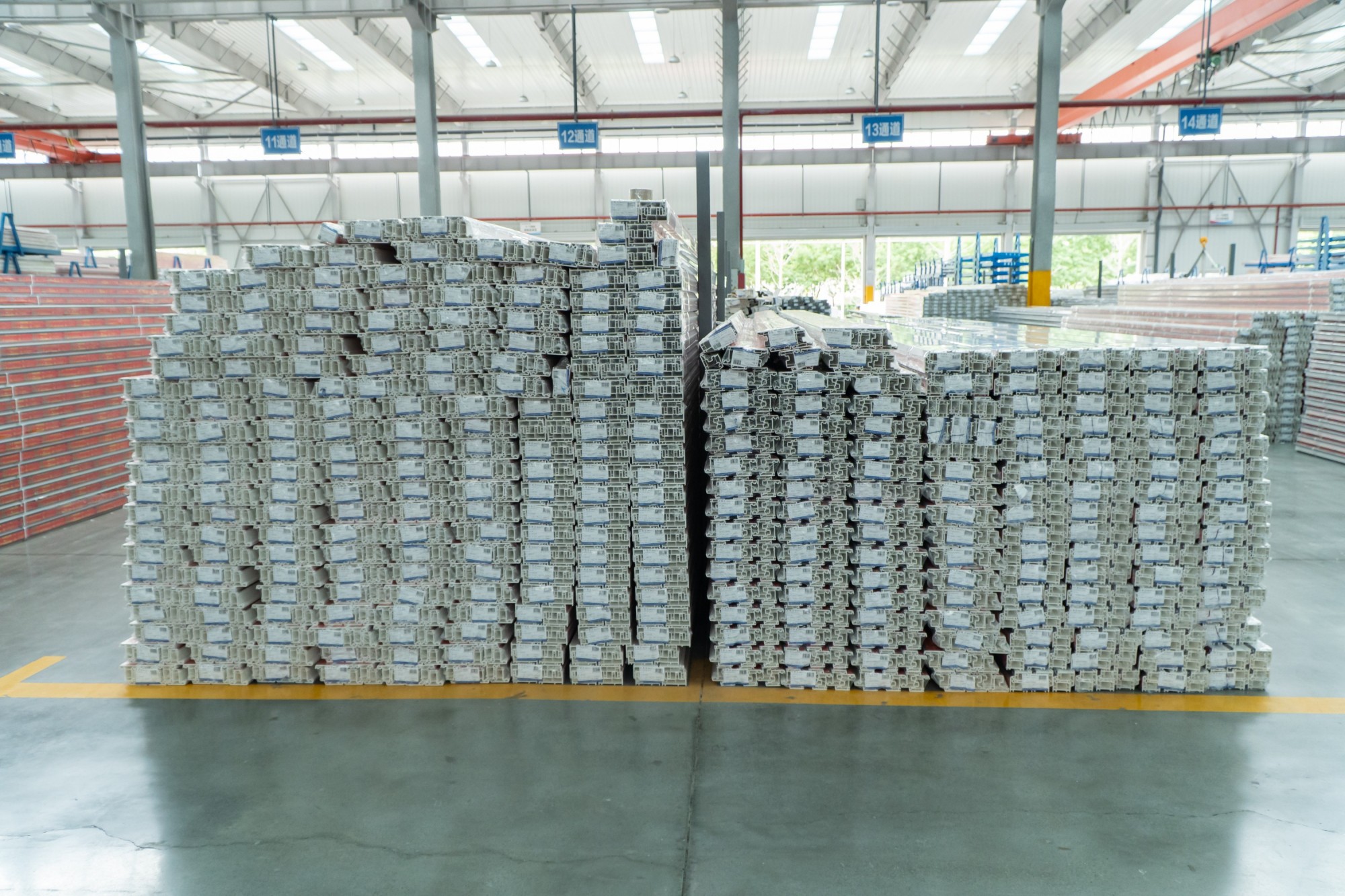

1. Standardised stacking: Avoid ‘heavy pressure, slanted placement, or direct sunlight exposure’
- Stacking areas must be level and dry; avoid open-air storage. If temporary outdoor storage is necessary, cover with sunshade and rainproof tarpaulins to prevent internal heat build-up.
- Profiles must be stacked horizontally in layers; vertical stacking or excessively thick layers are prohibited.
- Separate profiles of different lengths and cross-sections; avoid using narrow-section profiles as supports for wider ones.
2. Transport Protection: Minimise Vibration and Impact
- Secure profiles during transport using dedicated racks or wrap ends with bubble wrap. Prohibit stacking other heavy items in the vehicle that could compress profiles. Ensure ventilation during long-distance transport; maintain cabin temperatures below 40°C during summer shipments.
- Employ ‘two-end lifting’ during loading/unloading. Profiles exceeding 6m in length require forklift operation with specialised lifting attachments to ensure balanced force distribution.
Installation and Construction: Precise Fixing to Eliminate Installation Stress
Installation is critical for preventing PVC profile (particularly window/door profile) bending. Avoid long-term stress-induced deformation caused by installation deviations:
1. Pre-installation Inspection: Select qualified profiles and allow for environmental acclimatisation
- Inspect each profile before installation: Verify straightness using a straightedge with permissible deviation ≤2mm/m. Reject and prohibit use of profiles exceeding tolerance. Check surfaces for scratches or dents.
- After delivery to the installation site, allow profiles to ‘acclimatise for 24 hours’ before fitting. This permits adaptation to ambient temperature and humidity, preventing dimensional changes due to thermal expansion/contraction or moisture absorption caused by sudden shifts from cold/dry to hot/humid conditions, which could induce stress-induced bending post-installation.
2. Standardised Installation: Ensure ‘secure fixation and balanced load distribution’
- When installing door and window profiles, mark reference lines for positioning. Fixing point spacing must comply with specifications. Fixings must align with the profile’s reinforcement ribs, where wall thickness is greater and load-bearing capacity is enhanced. Fixing at thin-walled sections is prohibited.
- For long-span profiles, install intermediate supports at intervals ≤1.5m to prevent sagging due to span, self-weight or external forces.
- Avoid ‘forced installation’: Where excessive gaps exist between profiles and walls/other components, fill with polyurethane foam sealant. Striking with hammers or forcibly squeezing profiles is strictly prohibited.
Daily Use and Maintenance: Minimising External Damage and Environmental Degradation
Following installation, improper handling during routine use or environmental ageing may cause PVC profiles to warp. Note the following:
1. Avoid prolonged localised stress or impact
- When using doors and windows, refrain from leaning against them for extended periods or hanging heavy objects on the profiles. Prevent prolonged concentrated loads that may cause creep deformation. Open and close doors/windows gently, avoiding forceful impacts on the frame edges.
- Outdoor PVC profiles require regular inspection for accumulated debris, which should be promptly removed.
2. Regular maintenance to delay ageing
- Clean outdoor PVC profiles every 1-2 years, ensuring thorough drying afterwards. Should surface fading or cracking occur, apply a specialised PVC protective coating.
- During winter cold spells, PVC profiles become more brittle; avoid forceful impacts. In summer heat, refrain from directly rinsing profiles with cold water.
The core principle for preventing PVC profile bending is twofold: enhancing inherent material resistance to bending, and minimising adverse effects from external forces and environmental factors throughout storage, installation, and usage. This requires coordinated efforts across multiple stages: controlling production processes and raw materials at the manufacturing end; preventing crushing and extreme temperature/humidity fluctuations during storage and transport; ensuring precise fixing and balanced stress distribution during installation; and reducing damage and ageing during daily use. Only through this multi-faceted approach can PVC profile bending be maximally avoided, thereby extending its service life.
